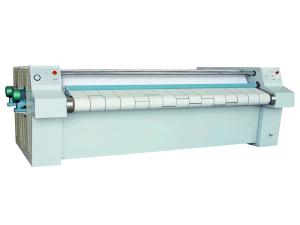

Chest Heated Ironer

LittleDuck specializes in the R&D and manufacturing of premium laundry equipment. This chest heated ironer is among the advanced ironing machines we have developed.

Features of the Chest Heated Ironer
1. Unique Heating Chest Design

This heated chest design provides an incomparably high heat conduction efficiency, excellent heating performance and long service life for an excellent ironing performance. Compared to traditional segmented ironers, this commercial ironing machine has a faster heat transmission and more uniform surface temperature, which ensure a fast ironing speed and excellent ironing effect.

A large wrap angle is used in the design of the chest heated ironer for a larger contact area with the textiles being ironed. As we've improved the design of this flatwork ironer, it has been become widely used in commercial and industrial applications.

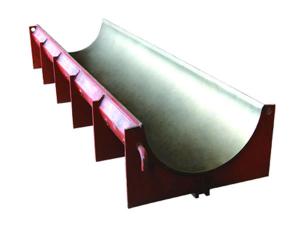

  • Jacketed Chest

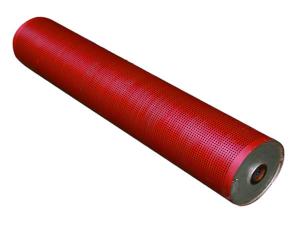

  • Rollers

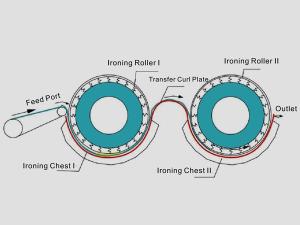

  • Ironing

2. Excellent Ironing Performance
1) Premium Spring and Needle-Punched Padding

Equipped with imported spring and needle-punched padding, this ironer has high elasticity and rigidity, ensuring full contact between the chest ironing surface and the textile being ironed. This padding has high air permeability, improving the removal of humidity generated during the ironing process. In short, this jacketed chest design, together with quality spring and padding ensures outstanding ironing effect of this ironer.

2) Heating Chamber
Transition arc plates connecting the two heating chests are designed with a heating chamber. The connection arc plate is heated throughout the entire ironing process and helps improve the heating effect and ironing efficiency as well as the flatness of the textile.

3) Independent Steam Trap
Independent steam trap completely removes condensation from inside the heating chest and maintains a uniform surface temperature, guaranteeing a reliable and quality ironing performance.

4) Direct Exhaust Design
Direct exhaust design with a large air pressure improves the discharge of humidity, facilitating the ironing cycle.

5) Variable Inverter
The variable inverter makes the ironing operation and adjustment simple, allowing it to be used with various textiles. The ironing speed is adjustable according to the type of textiles needing to be ironed.

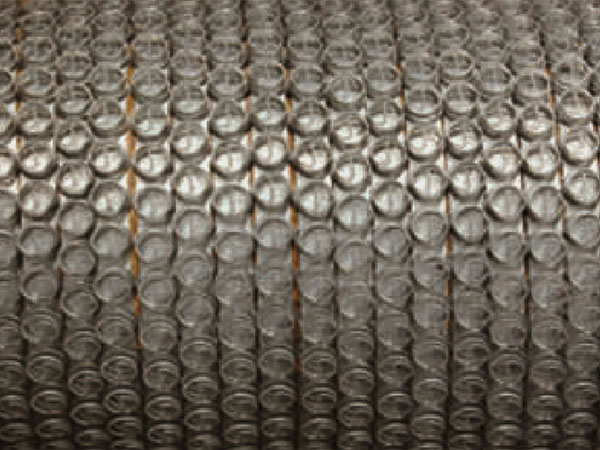

  • Spring

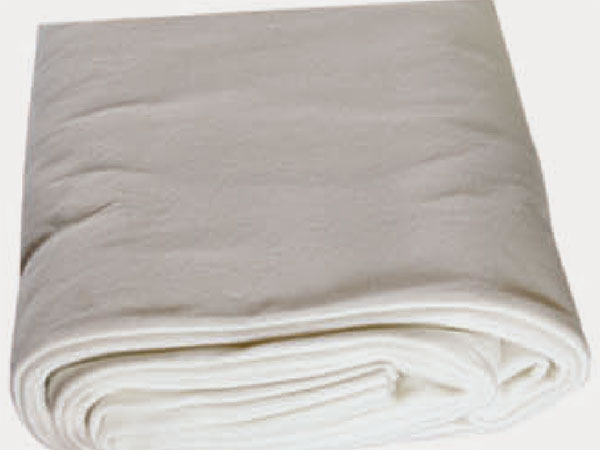

  • Needle-punched Padding

3. User-Friendly Design
1) Of a unique design, this industrial drying ironer can be connected with a flatwork folder to increase working efficiency. Quilt covers or bed sheets coming out of the ironing machine can move directly into the flatwork folder, saving manual labor. Both machines can be controlled with the same action, saving more labor and costs.

2) Perfect Height
Height of the ironing machine meets ergonomic requirements. In addition the tilting inlet makes the feeding process much easier.

3) Chain Transmission System
Chain transmission system provides reliable and stable driving with low noise as well as easy maintenance.

4) Safety Protection Design
Safety switch and emergency stop button protect operators from getting hurt.

5) Overload Protection
Independent circuit breaker provides overload protection.

6) Pressure Self-Balancing Design
Pressure self-balancing design will protect your machine in case the steam pressure exceeds the limit.

4. Standard Features of the Chest Heated Ironer
1) Computer-controlled system for easy operation;
2) Unique jacketed chest design for the steam provides efficient heat transmission;
3) Adjustable speed through variable frequency control;
4) High ironing speed;
5) Independent steam trap design with reliable condensation removal;
6) Chain transmission ensuring low noise and reliable ironing performance;
7) Overload protection for motor and photoelectric safety device;
8) Imported spring and needle-punched wool padding ensure excellent ironing effect;
9) Direct exhaust design with large air pressure, improving ironing efficiency;
10) Steam heating.

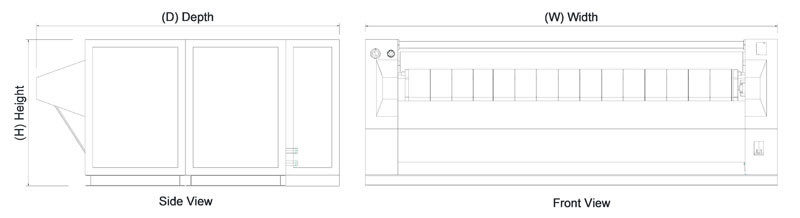

Dimensions
Technical Specification of the Chest Heated Ironer
Model No. Unit YBII3000B YBII3300B YBII3000 TBII3000A
IRONING CHEST
Ironing chest qty.   2 2 2 1cylinder+1chest
Max. ironing width mm 3000 3300 3000 3000
Ironing speed mm/min 5~30 5~30 5~30 ≤20
Chest diameter mm 2-φ800 2-φ800 2-φ1000 φ800 (cylinder)
mm Φ800 (chest)
Heating type   steam steam steam steam
STEAM
Steam pressure Mpa 0.4-0.8 0.4-0.8 0.4-0.8 ≤0.7
Steam consumption kg/h ≤200 ≤230 ≤280 ≤200
Steam pipe DN, mm 50 50 50 50
Drainage pipe DN, mm 25 25 25 25
COMPRESSED AIR
Compressed air pressure Mpa 0.7 0.7 0.7 0.7
Compressed air inlet mm Φ8 Φ8 Φ8 Φ8
Compressed air consumption L/h 100 120 120 50
Exhausting rate m3/h 3124 3124 1562 1410
Air pressure Kpa 1 1 0.7-1.0 2.1
POWER
AC Voltage V 380/415V 380/415V 380/415V 380/415V
Line Frequency Hz 50 50 50 50
Phase P 3 3 3 3
Motor power kW 5.5 5.5 11 4
Exhausting motor power kW 2-1.5 2-1.5 1.5 1.5
Dimensions
Width mm mm 4037 4337 4080 3957
Depth mm mm 2965 2965 3630 2845
Height mm mm 1400 1400 1750 1350
Net weight kg 5500 5900 7500 4100
