Island Freezer (Single-Sided)

Style: California
Xiaoya's island freezer has a single sided design and is a widely used commercial freezer for supermarkets, chain stores and convenience stores in the retail industry. With a width of 1,100mm, this commercial freezer is equipped with a high glass cover and used for preserving and displaying frozen foods.

Xiaoya provides two models of this single sided display fridge: the standard night curtain model and the energy saving sliding glass cover model. Other optional components for this refrigerated display cabinet are available as well.

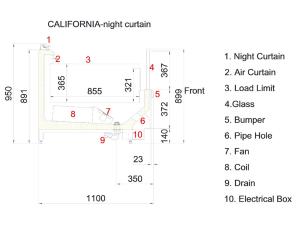

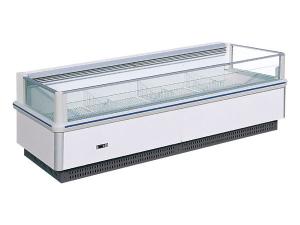

Night Curtain Model

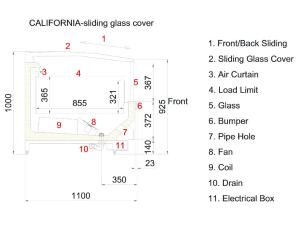

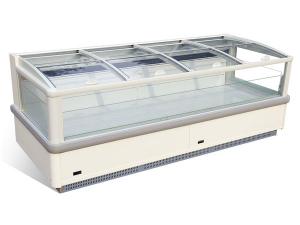

Sliding Glass Cover Model

Standard Options for Island Freezer
Case length option: 1875mm(6ft.), 2200mm(7ft.), 2500mm(8ft.) & 3750mm(12ft.), can be joined together according to user's needs;
Cover: night curtain, sliding glass cover (front-back moving);
Optional Inner divider, painted wire;
End panel: PU-glass end panel, PU end panel;
Available plastic price-tag;
Defrost: electrical heater;
Controller: CAREL brand, Easy series;
Expansion Valve: DANFOSS, balance mechanical thermal expansion valve;
Fan motor: EBM, conventional energy efficiency;
Refrigerant: R404a;
Color: RAL standard.

Technical Specifications of the Island Freezer
1. Night Curtain Model

Case Length Cover Option Model Number Dimension, mm Display Area, m2 Capacity, dm3
18 (1875mm) Night Curtain DD-E7JL-F183Y-01 1875x1100x950 2.20 423
22 (2200mm) Night Curtain DD-E7JL-F223Y-01 2200x1100x950 2.58 496
25 (2500mm) Night Curtain DD-E7JL-F253Y-01 2500x1100x950 2.94 564
37 (3750mm) Night Curtain DD-E7JL-F373Y-01 3750x1100x950 4.39 846
2. Sliding Glass Cover Model
Case Length Cover Option Model Number Dimension, mm Display Area, m2 Capacity, dm 3
18 (1875mm) Sliding Glass Cover DD-E7JL-F183Q-01 1875x1100x1000 1.96 423
22 (2200mm) Sliding Glass Cover DD-E7JL-F223Q-01 2200x1100x1000 2.29 496
25 (2500mm) Sliding Glass Cover DD-E7JL-F253Q-01 2500x1100x1000 2.65 564
37 (3750mm) Sliding Glass Cover DD-E7JL-F373Q-01 3750x1100x1000 3.95 846
