Low Front Multideck Display Cabinet

LittleDuck's low front multideck display cabinet is credited for its aesthetically pleasing display and good preservation performance. It is designed with a three-gear temperature setting, namely M1(-1 to 5℃) for sea food and fresh meat, M2(-1 to 7℃) for beverages, milk, and cooked foods like sausages, and H1(1 to 10℃). This display fridge has been widely used in supermarkets, fruit stores, cake shops and chain stores.

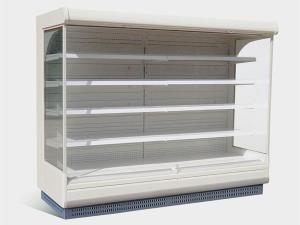

Wide Model-Auckland-Air Curtain

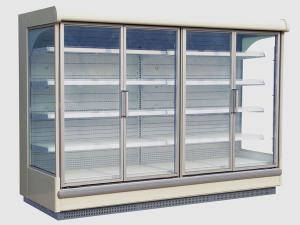

Wide Model-Auckland-hinged Glass Door

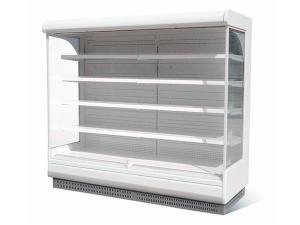

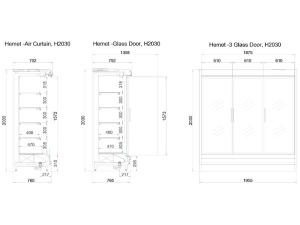

Narrow Model-Hemet-Air Curtain

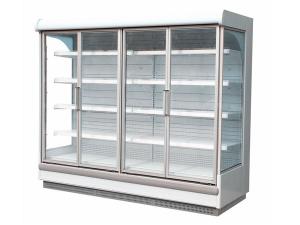

Narrow Model-Hemet-Glass Door

Standard Options for the Low Front Multideck Display Cabinet
Length:
For the wide model-Auckland: 1250mm, 1875mm, 2200mm, 2500mm & 3750mm;
For the narrow model-Hemet: 1875mm, 2500mm and 3750mm;
Glass Door: 1250mm 2Door, 1875mm 3Door, 2200mm 4Door, 2500mm 4Door, 3750mm 6 Door;
Height: 2030mm, 2180mm;
Low Front Edge: up to 350mm;
End Panel: all view glass end panel, PU end panel, PU end panel with inner mirror;
Standard Shelf: 4 rows and 1 bottom for height 2,030mm, 5 rows and 1 bottom for height 2,180mm;
Light: canopy, shelf at T8 fluorescent;
Night Curtain: PVC or fibrous;
Available plastic combo shelf-stop and price-tag;
Defrost: natural defrosting without electrical heater;
Controller: CAREL brand, Easy series;
Expansion Valve: DANFOSS, balance mechanical thermal expansion valve.
Fan motor: EBM, conventional energy efficiency
Refrigerant: R404a.

Features and Benefits of the Low Front Multideck Display Cabinet
1. With a low front edge design of up to 350mm in width, this multideck display chiller is excellent as a commodity display;
2. Designed with a large storage capacity and thin body, the narrow model-Hemet occupies a small area so you can better use the floor space of the supermarket;
3. Equipped with shelves with adjustable angles, this commercial refrigeration equipment can display your products well;
4. Supported by the stepwise laminar air curtain and back jet cooling technology, this refrigerated display cabinet is equipped with a pre-cooling evaporator with corrugated fins which helps reduce frost and energy use through a natural-defrost mode;
5. Filters mounted at drainage inlets prevent the drain system from becoming blocked;
6. A fuse in the electrical control box is easy to replace during maintenance;
7. Canopy light and shelf light can be controlled separately to save energy;
8. Refrigerants, like CO2 and glycol, and hot gas defrosting can be adopted for energy conservation and environmental protection;
9. Optional top mirror can be mounted to improve visual effect;
10. A 2,180mm wide display freezer, equipped with 6-row shelves, can be used to preserve and display dairy products or fruit;
11. Hinged glass door can be adopted to reduce up to 35% energy consumption.

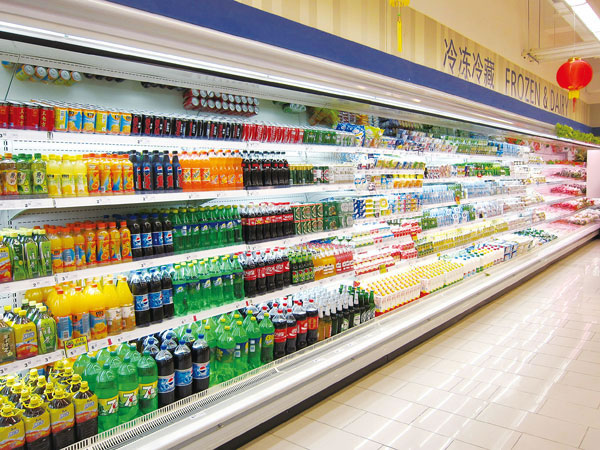

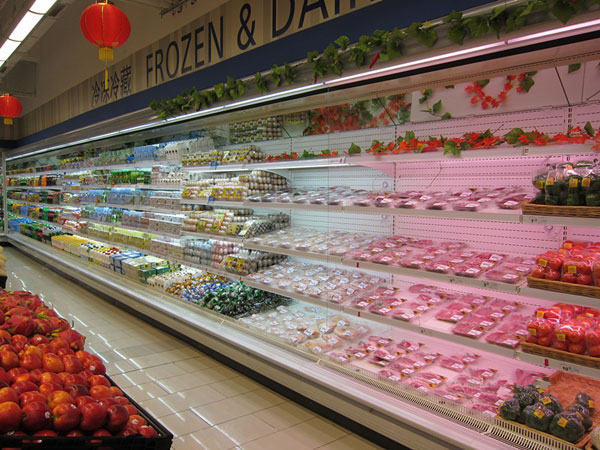

Application of Wide Model-Auckland
Application of Narrow Model-Hemet

Technical Specifications of the Low Front Multideck Display Cabinet

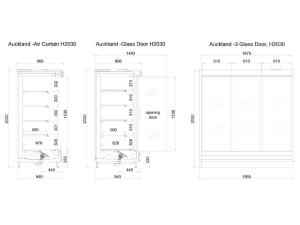

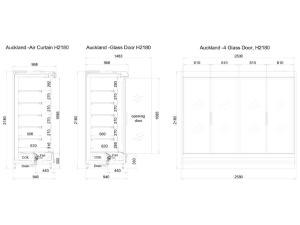

1. Wide Model-Auckland

Case Length Door Option Height, mm Model Number Display Area, m2 Capacity, dm3
12(1250mm) 2Door 2030 BZ-E7OK-F12203Y-01 2.06 963
18(1875mm) 3Door 2030 BZ-E7OK-F18203Y-01 3.09 1,444
22(2200mm) 4Door 2030 BZ-E7OK-F22203Y-01 3.63 1,694
25(2500mm) 4Door 2030 BZ-E7OK-F25203Y-01 4.13 1,925
37(3750mm) 6Door 2030 BZ-E7OK-F37203Y-01 6.19 2,888
12(1250mm) 2Door 2180 BZ-E7OK-F12223Y-01 2.25 1,050
18(1875mm) 3Door 2180 BZ-E7OK-F18223Y-01 3.38 1,575
22(2200mm) 4Door 2180 BZ-E7OK-F22223Y-01 3.96 1,848
25(2500mm) 4Door 2180 BZ-E7OK-F25223Y-01 4.50 2,100
37(3750mm) 6Door 2180 BZ-E7OK-F37223Y-01 6.75 3,150

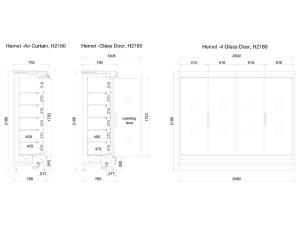

2. Narrow Model-Hemet

Case Length Door Option Height, mm Model Number Display Area, m2 Capacity, dm3
18(1875mm) 3Door 2030 BZ-E7HM-F18203Y-01 2.90 1,260
25(2500mm) 4Door 2030 BZ-E7HM-F25203Y-01 3.87 1,692
37(3750mm) 6Door 2030 BZ-E7HM-F37203Y-01 5.81 2,538
18(1875mm) 3Door 2180 BZ-E7HM-F18203Y-01 3.17 1,378
25(2500mm) 4Door 2180 BZ-E7HM-F25203Y-01 4.22 1,837
37(3750mm) 6Door 2180 BZ-E7HM-F37203Y-01 6.33 2,756
