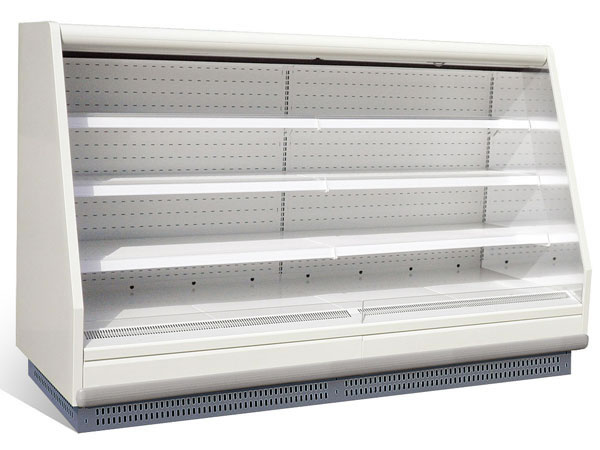

Low Height Multideck Display Cabinet

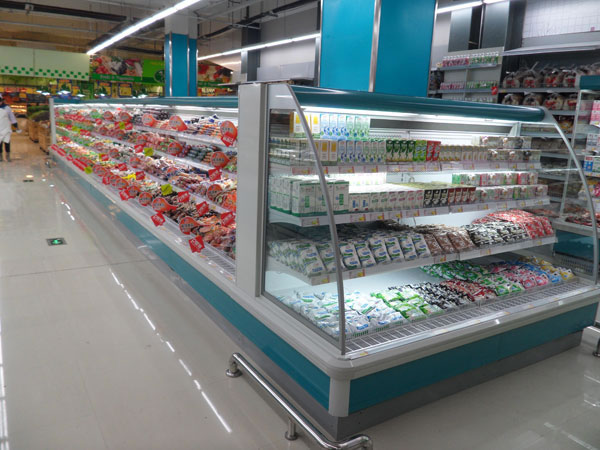

Our low height multideck display cabinet is designed with a lower height so it can better display seafood, frozen foods, fruits, vegetables, milk, and other foods. With three gears for temperature settings—the M1(-1 to 5℃) for seafood and fresh meat, M2(-1 to 7℃) for beverages, milk, and cooked foods like sausages, and H1(1 to 10℃), this display fridge is widely used in supermarkets, chain stores, shopping malls, and convenience stores.

Standard Options for the Low Height Multideck Display Cabinet
Length: 1250mm, 1875mm, 2500mm & 3750mm, can be joined together according to user's needs;
Height: 1300mm, 1600mm;
Low front Edge: up to 356mm;
End panel: all view Arc glass end panel, PU end panel;
Standard Shelf: 2 rows and 1 bottom for height 1300mm, 3 rows and 1 bottom for height 1600mm;
Light: canopy, shelf at T8 fluorescent;
Available night curtain;
Available plastic combo shelf-stop and price-tag;
Defrost: electrical heater;
Controller: CAREL brand, Easy series
Expansion Valve: DANFOSS, balance mechanical thermal expansion valve.
Fan motor: EBM, conventional energy efficiency
Refrigerant: R404a

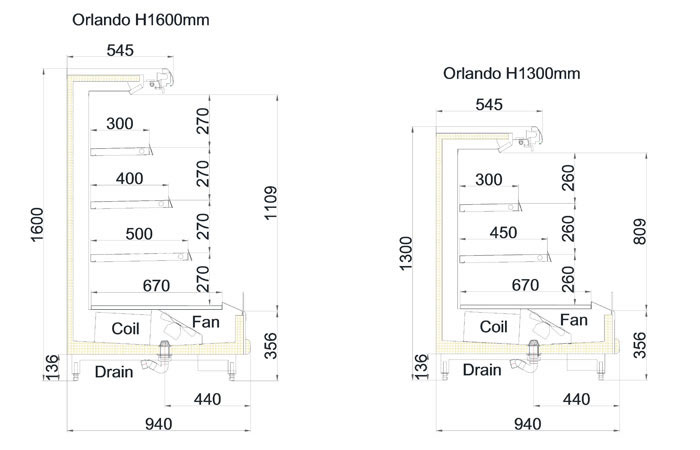

Dimension Diagrams

Features and Benefits of the Low Height Multideck Display Cabinet
1. A stepped shelf design effectively increases the commodity display area and enhances the display effect;
2. With a low front edge design up to 356mm in width, this multideck display chiller can display many products at once;
3. Equipped with shelves with adjustable angles, the refrigeration equipment displays products well;
4. Waterfall air curtains and multi-dimensional cooling air help keep a uniform temperature within the cabinet;
5. Filters mounted at the drainage inlet prevent the system from being blocked;
6. Optional all view glass arced end panel expands display area;
7. Its unique evaporator design effectively reduces frosting through hot gas defrost technology and helps save energy use;
8. Its bottom shelves, back plates, and fan's cover plate can be easily dissembled;
9. Refrigerants, like CO2 and glycol, and hot gas defrosting are used for energy conservation and environmental protection.

Technical Parameters of the Low Height Multideck Display Cabinet
Case Length Front edge Case Height Model Number Display Area, m2 Capacity, dm3
12(1250mm) 3 (356mm) 1300mm BZ-E7OL-F12133Y-01 1.25 368
18(1875mm) 3 (356mm) 1300mm BZ-E7OL-F18133Y-01 1.88 552
25(2500mm) 3 (356mm) 1300mm BZ-E7OL-F25133Y-01 2.50 736
37(3750mm) 3 (356mm) 1300mm BZ-E7OL-F37133Y-01 3.75 1,104
12(1250mm) 3 (356mm) 1600mm BZ-E7OL-F12163Y-01 1.25 368
18(1875mm) 3 (356mm) 1600mm BZ-E7OL-F18163Y-01 2.44 840
25(2500mm) 3 (356mm) 1600mm BZ-E7OL-F25163Y-01 3.25 1,120
37(3750mm) 3 (356mm) 1600mm BZ-E7OL-F37163Y-01 4.88 1,680
