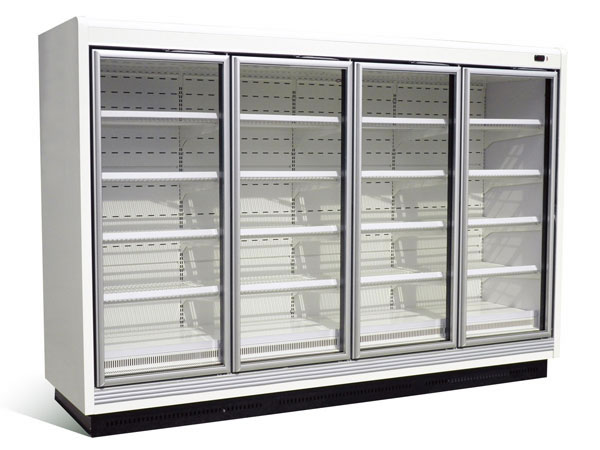

Large Capacity Glass Door Freezer/ Glass Door Chiller

Style: Atlanta

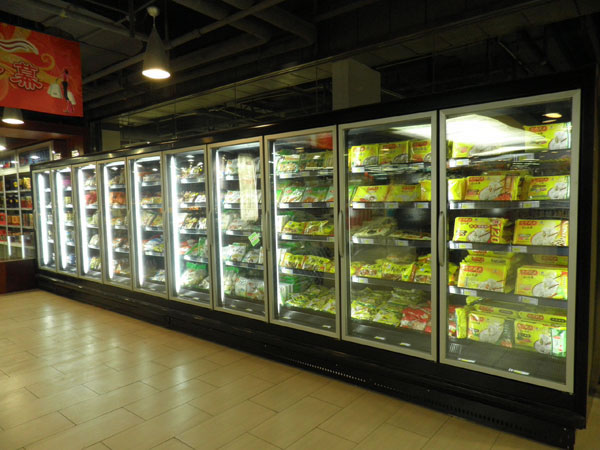

Supermarkets and chain stores are often in need of large capacity display freezers, making our large capacity glass door freezer ideal refrigeration equipmentto meet this demand. Its temperature settings for the freezer include -18 to -22℃ and can preserve frozen foods, ice cream, seafood, etc., while the refrigerator compartment has a range of -1 to 5℃ for storing fresh meat, beverages, dairy products, and cooked foods like sausages.

Standard Options for Large Capacity Glass Door
Application: for freezer: at -18 to -22℃, for refrigerator: at -1 to 5℃;
Door/Length: 2Door/1500mm, 3Door/2250mm, 4Door/3000mm, & 5Door/3750mm, can be joined together according to user's needs;
Height: 2030mm, 2230mm;
Super Low front Edge: up to 260mm;
End panel: PU-Glass end panel, PU end panel
Standard wire mesh shelf: 4 rows 560mm and 1 bottom for height 2030mm, 5 rows 560mm and 1 bottom for height 2230mm;
Light: Door light at T8 fluorescent;
Available plastic combo shelf-stop and price-tag;
Defrost: electrical heater;
Controller: CAREL brand, Easy series;
Expansion Valve: DANFOSS, balance mechanical thermal expansion valve;
Fan motor: EBM, conventional energy efficiency;
Refrigerant: R404a.

Energy Saving Option for Large Capacity Glass Door Freezer
LED door light;
High Efficiency Fans with CAREL multi-function controller;
Hot gas defrost system.

Intelligent Control Option for Large Capacity Glass Door Freezer
CAREL MPX Controller with thermal expansion valve (TEV);
CAREL MPX Controller with electronic expansion valve (EEV).

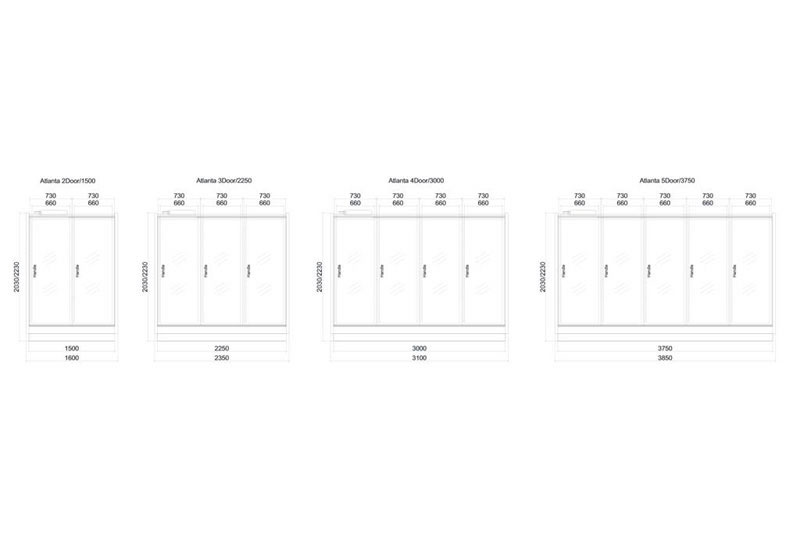

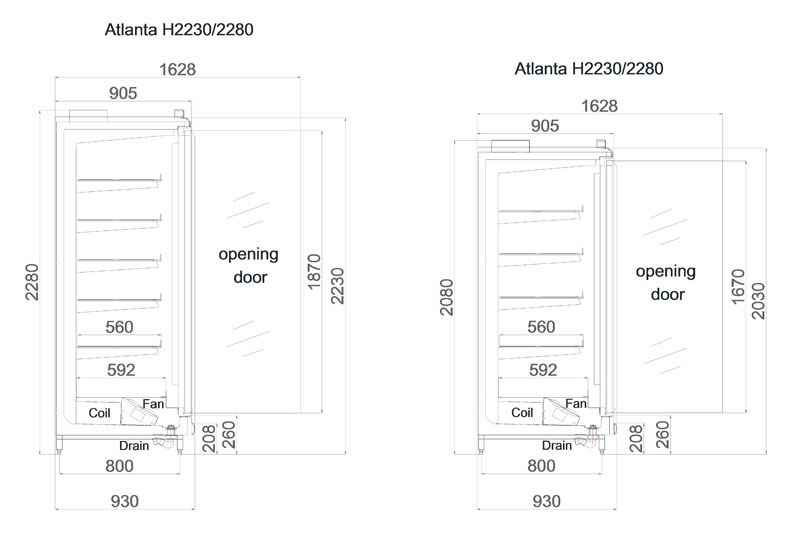

Dimension Diagrams

Features and Benefits of the Large Capacity Glass Door Freezer
1. This glass door chiller has a vertical strucutre and large storage capacity. Equipped with shelves up to 560mm in depth, it provides a large display area and takes up 60% less space compared to island freezers of the same capacity;
2. The distribution design for cooling air ensures uniform refrigeration performance and consistent temperature within the freezer;
3. Its door frame is designed to have a one-piece structure to avoid making seams between the doors and its frame;
4. Equipped with an anti-fogging glass door and vertical door light, this supermarket refrigerator enhances the effect of the display;
5. The glass door of this commercial refrigerator has a limit to how far it can open and will automatically close, making it easy to use;
6. The glass door, made of multilayered insulation glass, effectively prevents heat transmission and saves up to 50% energy consumption compared to traditional open freezers;
7. The multideck wire-shelves can be combined upon request, and shelf angle can be adjusted for a different display effect;
8. The electronic ballast also saves energy and avoids the necessity of a flashing light;
9. This upright display fridge has a unique evaporator design to eliminate frosting, and the hot gas defrost saves energy;
10. The bottom shelves, back plates and fan cover plate are easy to dissemble, making daily inspection and maintenance more convenient;
11. CO2 and glycol can be used for energy conservation and environmental protection.
12. Fuse is mounted in the control box for the sake of operation safety and easy inspection and maintenance.

Technical Specifications of the Large Capacity Glass Door Freezer
Type Door Case Length Case Height "BD" Freezer Model Display Area, m2 Capacity, dm3
Freezer 2Door 15(1550mm) 2030mm BD-E7YT-F1520-01 1.43 1,035
Freezer 3Door 22(2250mm) 2030mm BD-E7YT-F2220-01 2.15 1,553
Freezer 4Door 30(3000mm) 2030mm BD-E7YT-F3020-01 2.86 2,070
Freezer 5Door 37(3750mm) 2030mm BD-E7YT-F3720-01 3.58 2,588
Type Door Case Length Case Height "BZ" Chiller Model Display Area, m2 Capacity, dm3
Chiller 2Door 15(1550mm) 2230mm BZ-E7YT-F1522-01 1.61 1,200
Chiller 3Door 22(2250mm) 2230mm BZ-E7YT-F2222-01 2.42 1,800
Chiller 4Door 30(3000mm) 2230mm BZ-E7YT-F3022-01 3.21 2,400
Chiller 5Door 37(3750mm) 2230mm BZ-E7YT-F3722-01 4.04 3,000
